主要功能

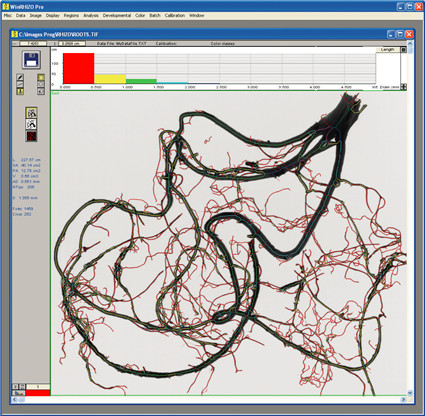

WinRHIZO 是一套用于洗根后的分析根系的多功能軟件系統，可以分析根系長度、直徑、面積、體積、根尖記數等，功能強大，操作簡單，廣泛運用于根系形態和構造研究。
儀器內置專門的雙光源照明系統，有效的去除了陰影和不均勻現象的影響，從而提供高分辨率的彩色圖像和黑白圖像，讀取TIFF，JPEG 標準格式的圖像。并采用非統計學方法測量計算出交叉重疊部分根系長度等參量，大大提高了分析結果的準確性。同時，Pro版軟件還可以進行更加復雜的根系顏色分析、連接分析、拓?fù)浞治龊头旨?jí)伸展分析。
|  |
測量參數
根系整體參數：總根長、平均直徑、總表面積、總投影面積、總體積、根尖數、分支數和交叉數等。
根直徑等級分布參數：根長、表面積、投影面積、體積、根尖數。
根系顏色分析參數：顏色類或群的根長、投影面積、表面積、平均直徑、體積、根尖計等。
根系連接分析參數：用于根系分支角度、連通性等形態研究
根系拓?fù)浞治鰠?shù)：連接數量、路徑長度等研究（需要根系完整）
根系分級伸展分析參數：記錄根系整體等級分布情況（需要根系完整）
圖像中獨立單個樣品分析：?jiǎn)蝹€(gè)樣品分別的形態、連接、拓?fù)洹⒎旨?jí)伸展分析。
應用領域
功能強大，操作簡單，廣泛應用于植物生理學、植物生態學、植物營養學、農學、園藝學、林學等領域的根系形態和構造研究。

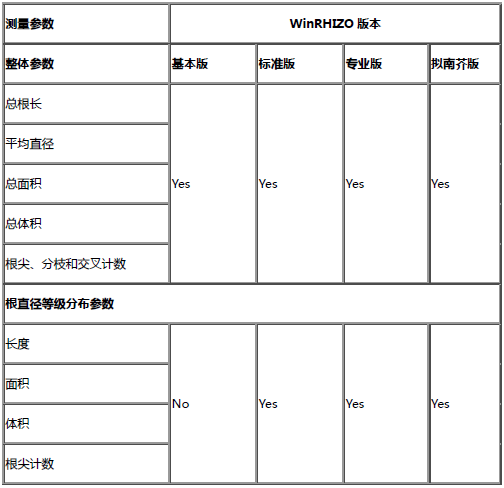

主要技術參數
主要技術參數
專業版
專業版除具備以上基本參數，還具備如下功能特征：
· 根系顏色分析：根的長度、面積、體積、根尖計數、根系存活數量等研究
· 根系連接分析：用于根系分支角度、連通性等形態研究
· 根系拓?fù)浞治觯哼B接數量、路徑長度等研究（需要根系完整）
· 根系分級伸展分析：記錄根系整體等級分布情況（需要根系完整）
種子分類 幼苗生長定量
葉片顏色分析（病理） 根系形態分析 菌根定量分析
擬南芥版
擬南芥版除具備專業版的所有功能外，還具備如下功能：

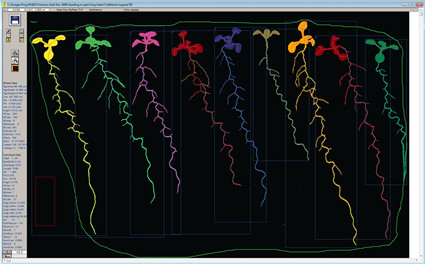

· 對未接觸到一起的幼苗、根系或其他樣品，獨立進行分區并分析；除了對圖像中的總樣品進行統計分析外，對每個獨立的樣品亦可進行統計分析
· 可根據圖像類型，將樣品邊界框的長度和寬度轉換成植物的高度和寬度或葉片的長度和寬度
· 對圖像中每個獨立的物體自動進行面積計算（如果不事先對圖像進行編輯，則重疊部分不計算，接觸到的物體算一個）
選購指南：
系統由以下兩部分組成：
圖像撲捉系統：經過廠家調試的標準根系掃描設備，匹配專門的光源，根系固定裝置等。
· STD4800：掃描面積 22×30 cm，投影面積 20×25 cm，分辨率 4800 DPI，可分辨最小粒子 0.005 mm
· LA2400：超大掃描面積 31x44 cm，投影面積 31x42 cm，分辨率 2400 DPI，可分辨最小粒子 0.011 mm
根系分析軟件：基本版 /標準版 /專業版/擬南芥版 WinRHIZO 分析軟件。
產地：加拿大 Regent
參考文獻
原始數據來源：Google Scholar
Zhang N, Shi X, Guan Z, Zhao S, Zhang F, et al. (2016) Treatment with spermidine protects chrysanthemum seedlings against salinity stress damage. Plant Physiology and Biochemistry 105: 260-270.
Zhang A, Fan D, Li Z, Xiong G, Xie Z (2016) Enhanced photosynthetic capacity by perennials in the riparian zone of the Three Gorges Reservoir Area, China. Ecological Engineering 90: 6-11.
Yu Y, Loiskandl W, Kaul H-P, Himmelbauer M, Wei W, et al. (2016) Estimation of runoff mitigation by morphologically different cover crop root systems. Journal of Hydrology 538: 667-676.
Yamamoto T, Suzuki T, Suzuki K, Adachi S, Sun J, et al. (2016) Detection of QTL for exudation rate at ripening stage in rice and its contribution to hydraulic conductance. Plant Science 242: 270-277.
Xu C, Tao H, Tian B, Gao Y, Ren J, et al. (2016) Limited-irrigation improves water use efficiency and soil reservoir capacity through regulating root and canopy growth of winter wheat. Field Crops Research 196: 268-275.
Wu J, Geilfus C-M, Pitann B, Mühling K-H (2016) Silicon-enhanced oxalate exudation contributes to alleviation of cadmium toxicity in wheat. Environmental and Experimental Botany 131: 10-18.
Win KT, Oo AZ, Ookawa T, Kanekatsu M, Hirasawa T (2016) Changes in hydraulic conductance cause the difference in growth response to short-term salt stress between salt-tolerant and -sensitive black gram (Vigna mungo) varieties. Journal of Plant Physiology 193: 71-78.
Wen Z, Shen J, Blackwell M, Li H, Zhao B, et al. (2016) Combined Applications of Nitrogen and Phosphorus Fertilizers with Manure Increase Maize Yield and Nutrient Uptake via Stimulating Root Growth in a Long-Term Experiment. Pedosphere 26: 62-73.
Wei L, Liu J, Su J, Jing G, Zhao J, et al. (2016) Effect of clipping on soil respiration components in temperate grassland of Loess Plateau. European Journal of Soil Biology 75: 157-167.
Wang W-f, Zong Y-z, Zhang S-q (2016) Effects of short-term osmotic stress on leaf hydraulic conductivity and ZmPIPs mRNA accumulation in maize seedlings. Journal of Integrative Agriculture 15: 2497-2506.
Wang P, Diao F, Yin L, Huo C (2016) Absorptive roots trait plasticity explains the variation of root foraging strategies in Cunninghamia lanceolata. Environmental and Experimental Botany 129: 127-135.
Wang C-M, Xia Z-R, Wu G-Q, Yuan H-J, Wang X-R, et al. (2016) The coordinated regulation of Na+ and K+ in Hordeum brevisubulatum responding to time of salt stress. Plant Science 252: 358-366.
Vaculíková M, Vaculík M, Tandy S, Luxová M, Schulin R (2016) Alleviation of antimonate (SbV) toxicity in maize by silicon (Si). Environmental and Experimental Botany 128: 11-17.
Tripathi VK, Rajput TBS, Patel N (2016) Biometric properties and selected chemical concentration of cauliflower influenced by wastewater applied through surface and subsurface drip irrigation system. Journal of Cleaner Production 139: 396-406.
Tomè E, Ventura M, Folegot S, Zanotelli D, Montagnani L, et al. (2016) Mycorrhizal contribution to soil respiration in an apple orchard. Applied Soil Ecology 101: 165-173.
Tomar RS, Tiwari S, Vinod, Naik BK, Chand S, et al. (2016) Molecular and Morpho-Agronomical Characterization of Root Architecture at Seedling and Reproductive Stages for Drought Tolerance in Wheat. PLoS One 11: e0156528.
Thangthong N, Jogloy S, Pensuk V, Kesmala T, Vorasoot N (2016) Distribution patterns of peanut roots under different durations of early season drought stress. Field Crops Research 198: 40-49.
Terzaghi M, Di Iorio A, Montagnoli A, Baesso B, Scippa GS, et al. (2016) Forest canopy reduction stimulates xylem production and lowers carbon concentration in fine roots of European beech. Forest Ecology and Management 379: 81-90.
Tang B, Yin C, Wang Y, Sun Y, Liu Q (2016) Positive effects of night warming on physiology of coniferous trees in late growing season: Leaf and root. Acta Oecologica 73: 21-30.
Sun Y, Mu C, Chen Y, Kong X, Xu Y, et al. (2016) Comparative transcript profiling of maize inbreds in response to long-term phosphorus deficiency stress. Plant Physiology and Biochemistry 109: 467-481.
Sonnemann I, Buchholz Y, Rautenberg D, Wurst S (2016) Land use intensity modulates the impact of root herbivores on plant interactions with above- and below-ground organisms. Agriculture, Ecosystems & Environment 219: 26-31.
Shtein I, Noy-Porat T, Eshel A (2016) Life cycle and reproductive botany of Scilla hyacinthoides, a Mediterranean geophyte. Scientia Horticulturae 201: 167-174.
Shi Y, Zhou G, Jiang Y, Wang H, Xu Z (2016) Does precipitation mediate the effects of elevated CO2 on plant growth in the grass species Stipa grandis? Environmental and Experimental Botany 131: 146-154.
Shan G, Sun Y, Cheng Q, Wang Z, Zhou H, et al. (2016) Monitoring tomato root zone water content variation and partitioning evapotranspiration with a novel horizontally-oriented mobile dielectric sensor. Agricultural and Forest Meteorology 228–229: 85-94.
Saha S, Chakraborty D, Sehgal VK, Nain L, Pal M (2016) Long-term atmospheric CO2 enrichment impact on soil biophysical properties and root nodule biophysics in chickpea (Cicer arietinum L.). European Journal of Agronomy 75: 1-11.
Ryan MH, Kidd DR, Sandral GA, Yang Z, Lambers H, et al. (2016) High variation in the percentage of root length colonised by arbuscular mycorrhizal fungi among 139 lines representing the species subterranean clover (Trifolium subterraneum). Applied Soil Ecology 98: 221-232.
Ruiz-Yanetti S, Chirino E, Bellot J (2016) Daily whole-seedling transpiration determined by minilysimeters, allows the estimation of the water requirements of seedlings used for dryland afforestation. Journal of Arid Environments 124: 341-351.
Reyes-Cabrera J, Zotarelli L, Dukes MD, Rowland DL, Sargent SA (2016) Soil moisture distribution under drip irrigation and seepage for potato production. Agricultural Water Management 169: 183-192.
Rees F, Sterckeman T, Morel JL (2016) Root development of non-accumulating and hyperaccumulating plants in metal-contaminated soils amended with biochar. Chemosphere 142: 48-55.
Rankl S, Gunsé B, Sieper T, Schmid C, Poschenrieder C, et al. (2016) Microbial homoserine lactones (AHLs) are effectors of root morphological changes in barley. Plant Science 253: 130-140.
Ramamoorthy P, Lakshmanan K, Upadhyaya HD, Vadez V, Varshney RK (2016) Shoot traits and their relevance in terminal drought tolerance of chickpea (Cicer arietinum L.). Field Crops Research 197: 10-27.
Qiao Y, Fan J, Wang Q (2016) Effects of farmland shelterbelts on accumulation of soil nitrate in agro-ecosystems of an oasis in the Heihe River Basin, China. Agriculture, Ecosystems & Environment 235: 182-192.
Qiang-Sheng W, Ming-Qin C, Ying-Ning Z, Chu W, Xin-Hua H (2016) Mycorrhizal colonization represents functional equilibrium on root morphology and carbon distribution of trifoliate orange grown in a split-root system. Scientia Horticulturae 199: 95-102.
